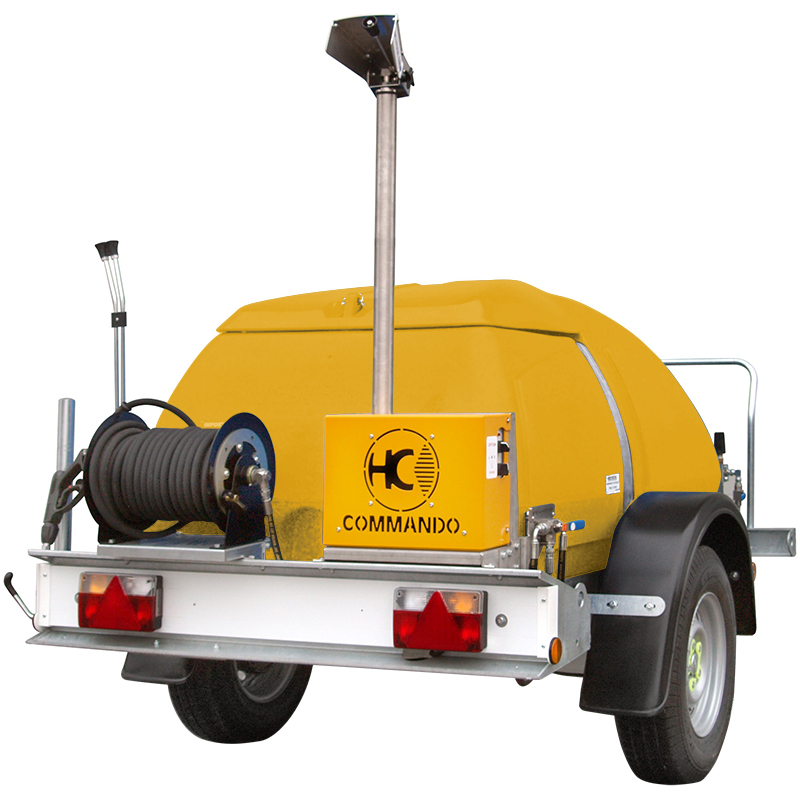

4000 Dustguard

Designed to project a jet of water approximately 25 metres which fragments to provide an effective dust suppression system.

  • Effective dust suppression
  • Bowser mounted
  • Labour & water saving
  • 2-in-1 dust suppression and pressure washer
  • Sales, lease and hire options
  • Genuine Hatz 1B40 U2 single cylinder, diesel engine
  • Electric key start (with pull start back up) c/w with audible warning and indicator light
  • Gear box for reliable power transmission and low pump speed
  • Proportional flow unloader, safety relief valve and pressure gauge
  • UDOR triplex plunger pump
  • Brass cylinder head, ceramic pistons, stainless valves
  • Laser cut chassis, c/w radial edges
  • Protective steel top cover
  • Single solid axle, electroplated
  • High clearance metal hub wheels, c/w roller bearings and 4 ply flotation tyres
  • Inlet water strainer c/w stainless steel filter element
  • Commando® Dustguard fully oscillating dust control unit, c/w on/ off control selector switch for short, medium or long oscillation strokes
  • Choice of mains water or suction
P

Optional Accessories


Lifting frame, c/w lifting certificate


Chemical foam application equipment


Sand blasting equipment


Intermediate drain jetting hoses and jets


Interchangeable lances

?

MODEL: 4000 Dustguard


Throw
25m
Oscillation
Short, Medium or Long stroke
Engine
Hatz 1B40 U2 diesel
Pump Pressure
200bar / 2900psi
Water Capacity
1100ltr / 240gal
Dimensions
(L)3500mm x (W)1700mm x (H)1340mm
Weight
500kg
